Calling IFS Cloud APIs using ODBC and SSIS PowerPack

hardik · December 17, 2025, 1:26pm

This article explains how to integrate IFS Cloud REST / OData APIs using ZappySys PowerPack tools.

The guide is intentionally split into two parts:

Part 1 – ODBC: Recommended for reporting, ad-hoc queries, and multi-tool access
Part 2 – SSIS: Recommended for ETL, data sync, and upsert scenarios

This structure makes it easier to choose the right approach based on your use case.

Overview

IFS Cloud exposes data via REST APIs and OData projections, secured using OAuth 2.0 (OpenID Connect).

Key points:

IFS Cloud does not support Basic Authentication
OAuth 2.0 Client Credentials flow is required
Access is controlled via IAM Clients, Service Users, and Permission Sets

ZappySys PowerPack supports OAuth and OData natively, allowing IFS Cloud APIs to be consumed without custom code.

Prerequisites

Before you begin, ensure you have:

Access to IFS Cloud Solution Manager / Admin portal
Permission to create or view IAM Clients
ZappySys ODBC PowerPack and/or SSIS PowerPack installed
IFS Cloud environment details (DEV / UAT / PROD)

Example environment used in this article:

IFS Base URL: https://interprimo-uat.ifs.cloud
Realm: primuat1

Authentication Summary (IFS Cloud)

IFS Cloud authentication is handled using OAuth 2.0.

You will need:

IAM Client ID
Client Secret
Service User linked to the IAM Client
Permission Set granting access to required projections and company

Missing permissions will result in 403 – Forbidden, even if token generation succeeds.

Calling IFS Cloud APIs using ODBC PowerPack

This approach is recommended when you want to expose IFS Cloud APIs as relational tables that can be consumed by many applications.

1. Get OAuth Credentials from the IFS Admin Portal

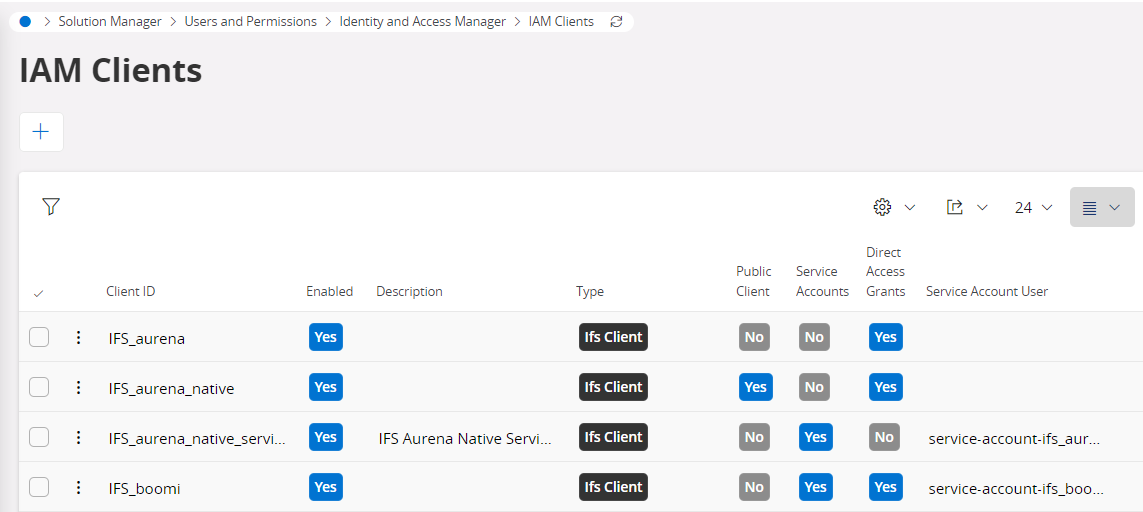

1.1 Create or Verify IAM Client

Grant Type: Client Credentials

Client Type: Confidential
Grant Type: Client Credentials
Service Account: Enabled

Make a note of:
- Client ID
- Client Secret

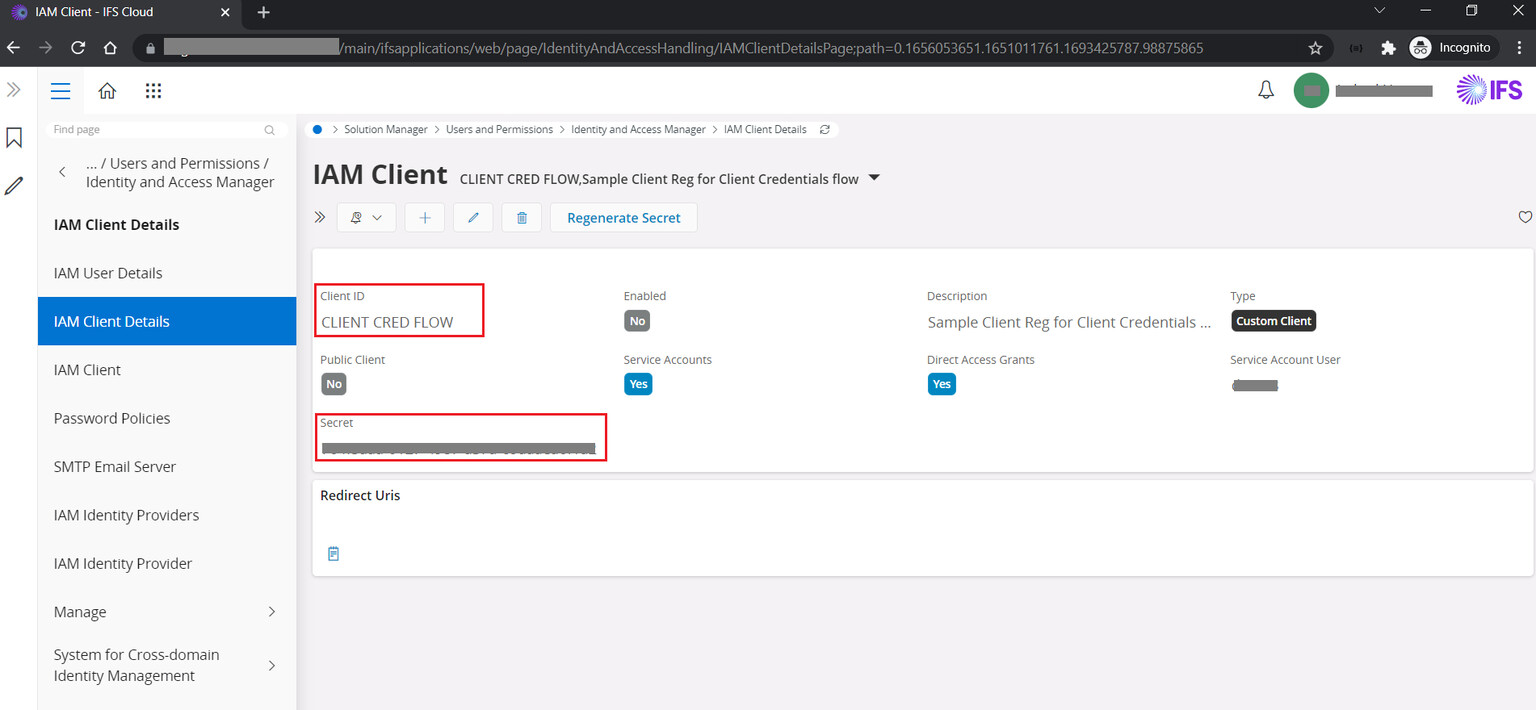

IAM Client details page1536×710 123 KB

1.2 Verify Service User and Permissions
- Ensure the IAM Client is linked to a Service User
- Assign a Permission Set that includes:
  - Projection access (e.g. Customer – Read)
  - Company access

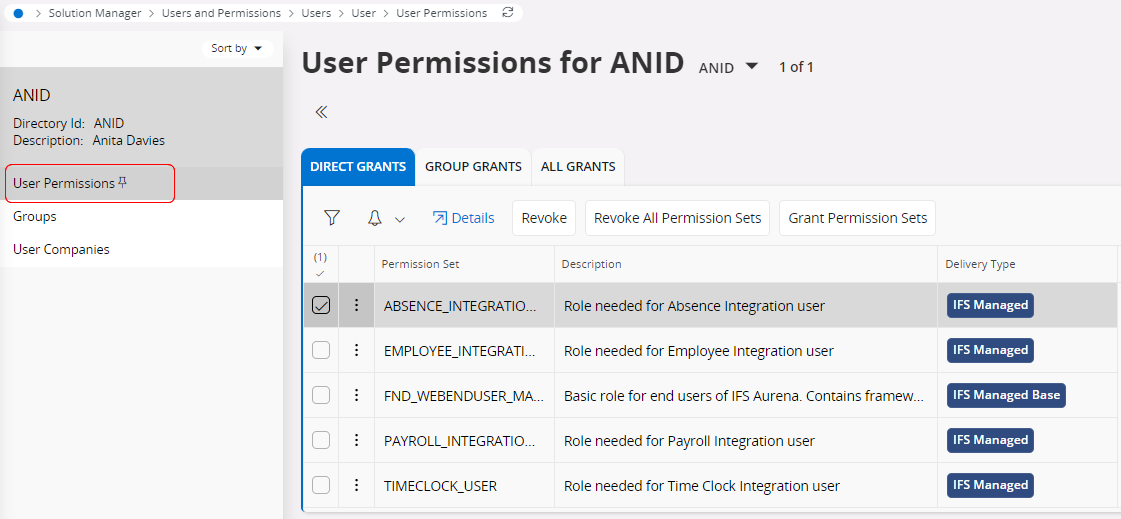

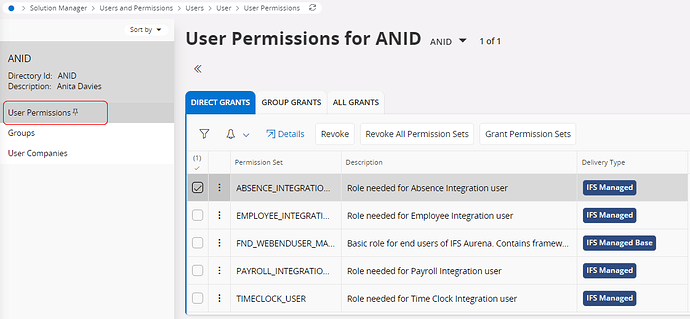

Service User → Permission Sets1121×519 50.5 KB

Configure ZappySys ODBC DSN

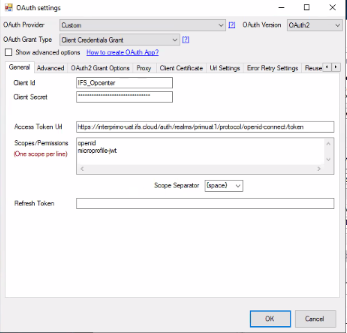

2.1 OAuth Settings

Configure OAuth using Client Credentials:

Token URL:

https://interprimo-uat.ifs.cloud/auth/realms/primuat1/protocol/openid-connect/token

Scope:

openid microprofile-jwt

Enter Client ID and Client Secret, then click Test Connection.

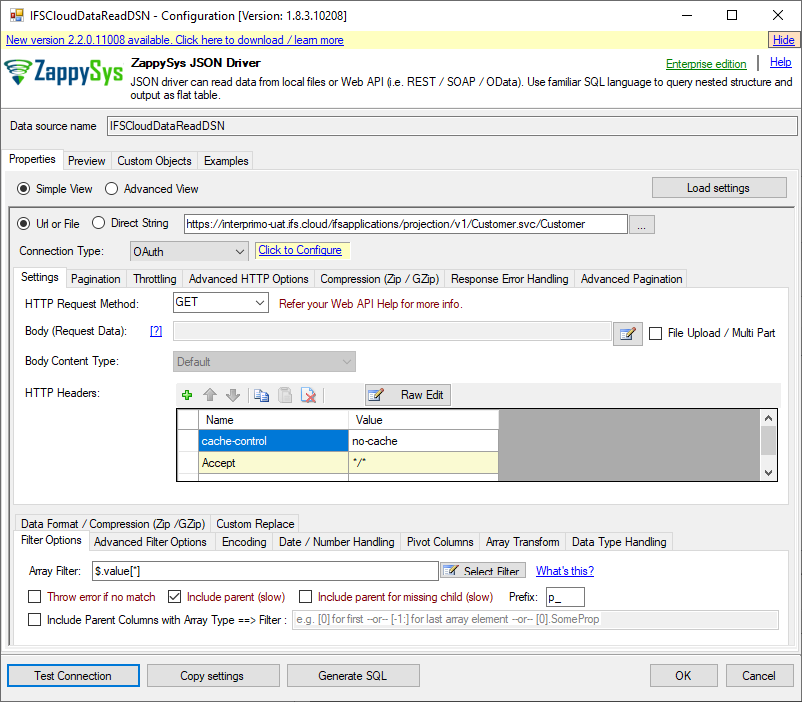

2.2 OData Endpoint Settings

Set Base URL:

https://interprimo-uat.ifs.cloud/ifsapplications/projection/v1/

Example resource:

Customer.svc/Customer

Optional OData options:

$top
$filter
$select

2.3 Preview and Validate Data

Use Preview / Metadata to confirm:

Token generation works
Permissions are correct
Data is returned successfully

3. Using ODBC from Other Applications

Once the DSN is created, it can be reused across multiple tools.

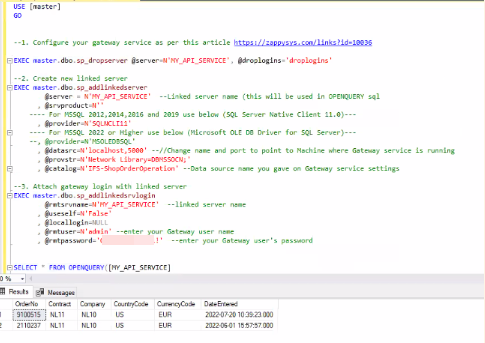

3.1 SQL Server (Linked Server)

Example query:

SELECT *
FROM OPENQUERY(IFS_ODBC, '
SELECT *
FROM "Customer.svc/Customer"
WHERE CustomerId = ''1000''
');

3.2 Other Supported Applications

The same ODBC DSN can be used from:

Power BI
Excel
.NET applications
Python (pyodbc)
Java
Any ODBC-compliant BI or reporting tool

Calling IFS Cloud APIs using SSIS PowerPack

Use this approach when you need ETL-style integration rather than ad-hoc access.

Typical SSIS Pattern

OAuth Connection Manager
- Client Credentials flow
- Uses the same IAM Client ID and Secret
JSON Source
- Calls IFS Cloud REST / OData endpoints
- Supports filters and pagination
Upsert Destination
- Inserts or updates data in SQL Server based on business keys

This pattern is ideal for scheduled loads, incremental syncs, and production ETL pipelines.

Summary

ODBC PowerPack is best for reporting, querying, and multi-tool access
SSIS PowerPack is best for controlled ETL and data synchronization
Both approaches use the same IFS Cloud OAuth configuration

This flexibility allows you to integrate IFS Cloud securely while choosing the tool that best fits your scenario.
