SSIS tutorial: Identifying which rows were inserted or updated in SSIS

Tutorials SSIS Tutorials
, , ,
1

Introduction

The Upsert Destination component in ZappySys performs an insert-or-update operation against a target, but sometimes you also need to know which rows were inserted and which were updated — for example, to log them, audit them, or route them to different downstream processes. The Upsert Destination exposes two additional outputs for exactly this purpose: New Records Output and Updated Records Output.

Prerequisites

Steps

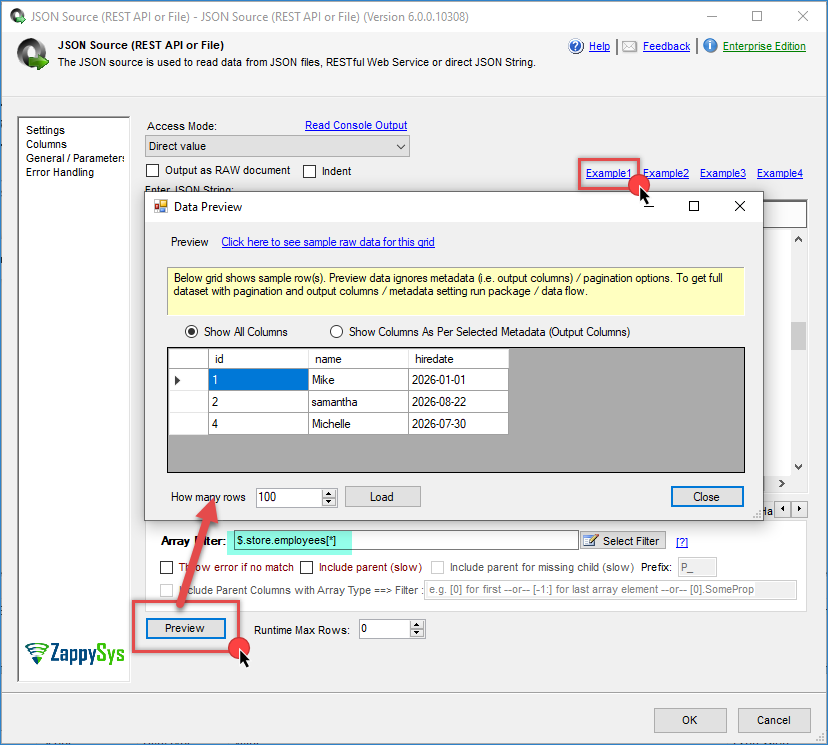

  1. Drag and drop a source component; in this example, we’ll use the JSON Source.

  2. Enter a valid source table. We’ll use example 1 from the component, with the following data. We’ll update the first 2 rows and insert the last user into the database.

    image828×745 47.2 KB

  3. Drag and drop the Upsert Destination and connect it to the JSON Source.

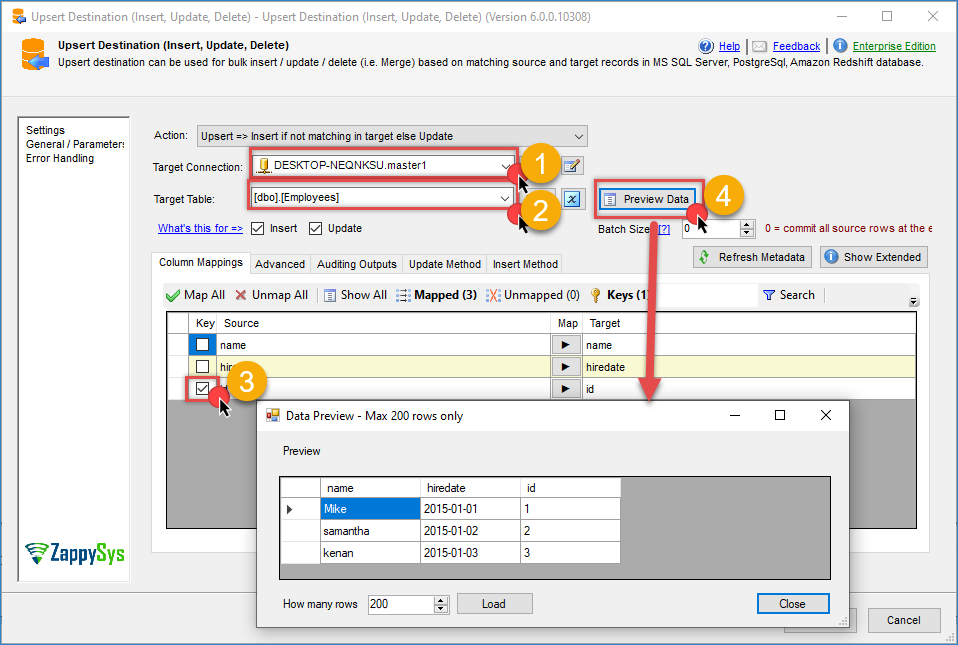

  4. Configure the destination component: create or select the connection and the target table.

  5. Check the primary key(s).

  6. Preview the data from the database to confirm it looks correct.

  7. Click OK to save the configuration.

    image958×645 56.8 KB

  8. Drag a connector from the Upsert Destination to the destination component where you want to capture the inserted and updated rows (e.g. a Trash Destination for testing).

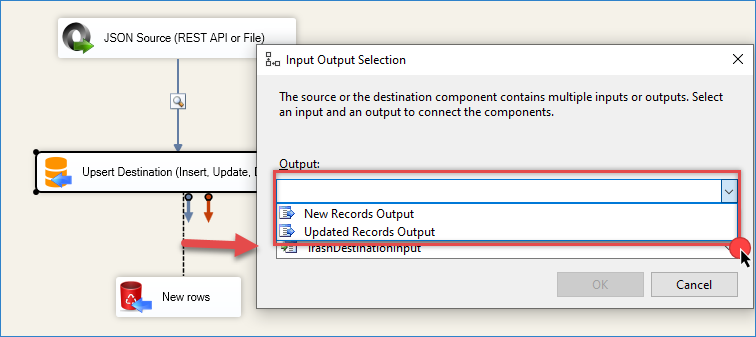

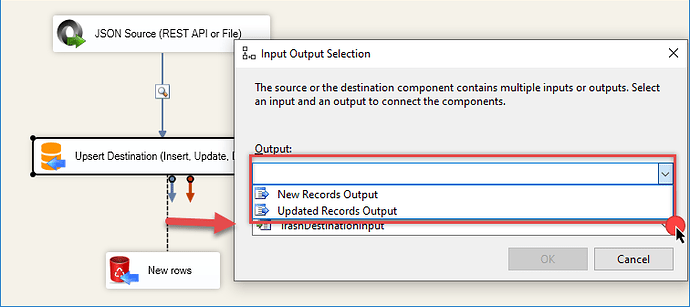

  9. Since the Upsert Destination has multiple outputs, the Input Output Selection dialog appears. In the Output dropdown, select New Records Output.

    image756×337 25.8 KB

  10. Click OK. This output will now carry only the rows that were inserted.

  11. Repeat the process: drag another connector from the Upsert Destination to a second destination component, and this time select Updated Records Output in the dialog.

  12. Click OK. This second output will carry only the rows that were updated.

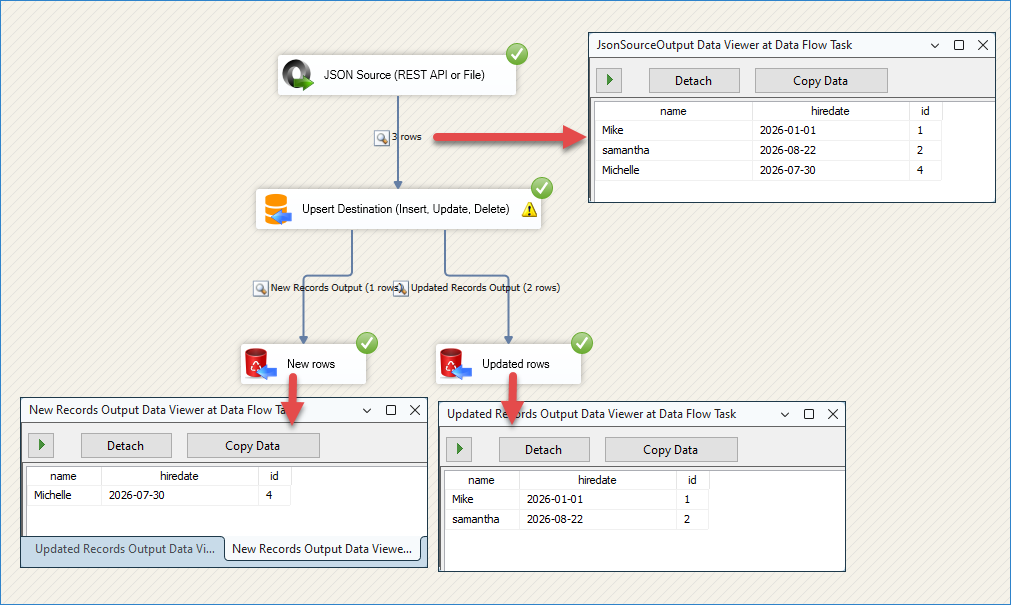

  13. Run the package. Each destination will receive only the rows matching its assigned operation type.

    image1011×605 46.4 KB

Conclusion

The New Records Output and Updated Records Output on the Upsert Destination component let you capture inserted and updated rows separately, without adding extra lookup or comparison logic to your Data Flow. This makes it straightforward to log, audit, or route insert vs. update operations independently.
