SSIS Tutorial: How to Connect PostgreSQL Using SSL (.PFX Certificate) in SSIS PowerPack

hardik · December 24, 2025, 10:57am

Problem

When configuring a PostgreSQL Source or Destination in SSIS using ZappySys SSIS PowerPack, the connection test may fail if the PostgreSQL server enforces SSL / client certificate authentication.

In most cases, PostgreSQL administrators provide certificates in PEM format, such as:

client-key.pem
client-cert.pem
server-ca.pem

While these files work fine in tools like DBeaver or psql, the ZappySys PostgreSQL connector requires a single .pfx (PKCS#12) certificate file.

Root Cause

The PostgreSQL driver used by ZappySys does not directly consume separate PEM files. Instead, it expects:

Client private key
Client certificate
Server CA certificate

to be bundled into one .pfx file.

If this conversion is not done correctly, you may see errors such as:

Invalid certificate
Value cannot be null
SSL handshake failed

Solution Overview

Convert the provided PEM certificate files into a .pfx file using OpenSSL, then configure that .pfx file in the ZappySys PostgreSQL Connection Manager.

Step-by-Step Implementation

Step 1 — Collect Required Certificate Files

Ensure you have the following files from your PostgreSQL administrator:

File Name	Description
`client-key.pem`	Client Private Key
`client-cert.pem`	Client Certificate
`server-ca.pem`	Server CA Certificate

Place all files in the same folder.

Step 2 — Install OpenSSL on Windows

Download Win64 OpenSSL – Light from the official OpenSSL Windows build:

Download Link

During installation:

Select “Add OpenSSL to the system PATH”
Keep default options

You need to set the PATH System Environment Variable, below is the sample screenshot of it.

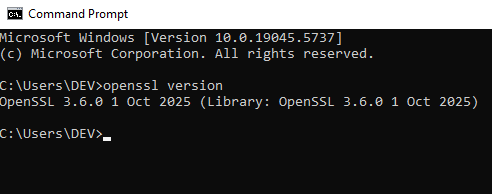

After installation, verify:

openssl version

Step 3 — Create the `.pfx` File from PEM Certificates

Open Command Prompt and navigate to the folder containing your PEM files.

Run the following command:

openssl pkcs12 -export -inkey client-key.pem -in client-cert.pem -certfile server-ca.pem -out postgresql-client.pfx

You will be prompted to:

Enter a password for the .pfx file
Confirm the password

After successful execution, the file postgresql-client.pfx will be created.

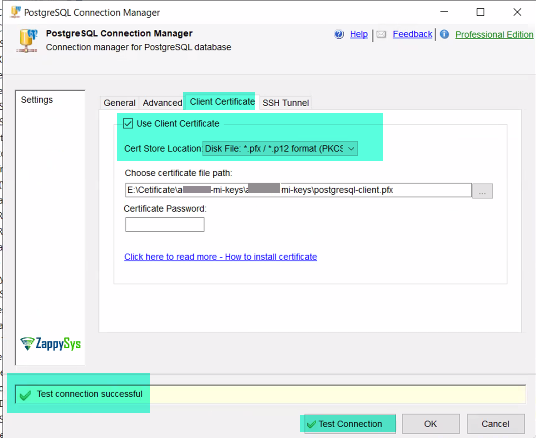

Step 4 — Configure ZappySys PostgreSQL Connection Manager

Open your SSIS package
Add or edit PostgreSQL Connection Manager
Enable SSL / Certificate Based Authentication
Configure:

Certificate File Path → postgresql-client.pfx
Certificate Password → Password used during .pfx creation

Leave PEM-related fields empty
Click Test Connection

Connection should now succeed.

Command Breakdown

Parameter	Purpose
`-inkey client-key.pem`	Client private key
`-in client-cert.pem`	Client certificate
`-certfile server-ca.pem`	Server CA chain
`-out postgresql-client.pfx`	Output `.pfx` file

Important Notes

The .pfx file must include all three components
Password is mandatory for .pfx and must be supplied in SSIS
If the connection works in DBeaver but not SSIS, this is usually a certificate format mismatch
This applies to PostgreSQL Source, Destination, and Lookup components

Conclusion

When PostgreSQL SSL is enabled, ZappySys SSIS PowerPack requires certificates in PKCS#12 (.pfx) format. By converting PEM files into a single .pfx file using OpenSSL and configuring it correctly in the PostgreSQL Connection Manager, SSL connections work reliably in SSIS.
