Introduction
When working with SQL Server Integration Services (SSIS), regular expressions (regex) can be extremely effective for transforming and cleaning data. This guide explores common regular expression (regex) patterns in SSIS, with a special focus on lookaheads and lookbehinds, powerful yet often underutilized features that enable conditional pattern matching.
A regular expression is a sequence of characters that defines a search pattern. For building and testing patterns, tools like Regex Hero or Regex101 are highly recommended.
Lookahead and Lookbehind in Regex
Lookaheads and lookbehinds are zero-width assertions, meaning they match a pattern based on surrounding context—without including that context in the final result.
Positive Lookahead
MySearchedQuery(?=-)
Matches "MySearchedQuery" only if it is followed by a hyphen (-).
Match: MySearchedQuery-
No Match: MySearchedQuery
Positive Lookbehind
(?<=-)\d+
Matches one or more digits only if preceded by a hyphen.
Match: -123 (matches 123)
No Match: 123
Negative Lookahead
MySearchedQuery(?!-)
Matches "MySearchedQuery" only if not followed by a hyphen.
Match: MySearchedQuery
No Match: MySearchedQuery-
Negative Lookbehind
(?<!-)MySearchQuery
Matches "MySearchQuery" only if not preceded by a hyphen.
Match: MySearchQuery
No Match: -MySearchQuery

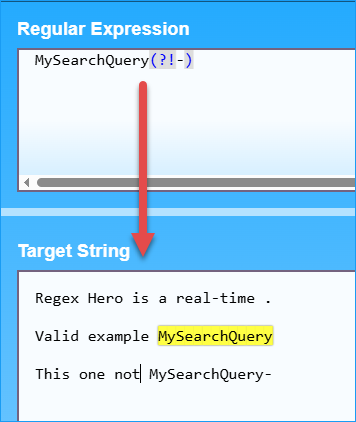

Test these examples interactively using Regex Hero:
Most Common Regex Patterns
| Pattern | Description | Example Match |
|---|---|---|
^ |
Start of line or string | ^abc in "abc123" |
$ |
End of line or string | abc$ in "123abc" |
. |
Any character (except newline) | a.c → "abc", "a-c" |
\d |
Digit [0-9] |
\d+ → "123" |
\w |
Word character [a-zA-Z0-9_] |
\w+ → "abc_123" |
\s |
Whitespace | \s+ → spaces, tabs |
[abc] |
One of a, b, or c | [aeiou] → vowels |
[^abc] |
Not a, b, or c | [^0-9] → not a digit |
* |
0 or more occurrences | a* → "", "a", "aaa" |
+ |
1 or more occurrences | a+ → "a", "aaa" |
? |
0 or 1 occurrence | a? → "", "a" |
{n} |
Exactly n occurrences | \d{4} → "2025" |
{n,} |
At least n occurrences | \d{2,} → "12", "123" |
{n,m} |
Between n and m occurrences | \d{2,4} → "12", "1234" |
Real-World Examples
| Pattern | Use Case | Example Match |
|---|---|---|
^\d{4}-\d{2}-\d{2}$ |
Date format YYYY-MM-DD |
"2025-07-10" |
\b\w+@\w+\.\w{2,}\b |
Email address | "john@example.com" |
https?://[^\s]+ |
URL | "https://openai.com" |
^\+?\d{10,15}$ |
International phone number | +1234567890 |
(?<=<title>).*?(?=</title>) |
Extract between <title> tags |
"My Page" from <title>My Page</title> |
(?<!\d)\d{5}(?!\d) |
Validates 5-digit zip code only | "90210" |
Using Regex in SSIS Components
You can use regex across several ZappySys and SSIS components:

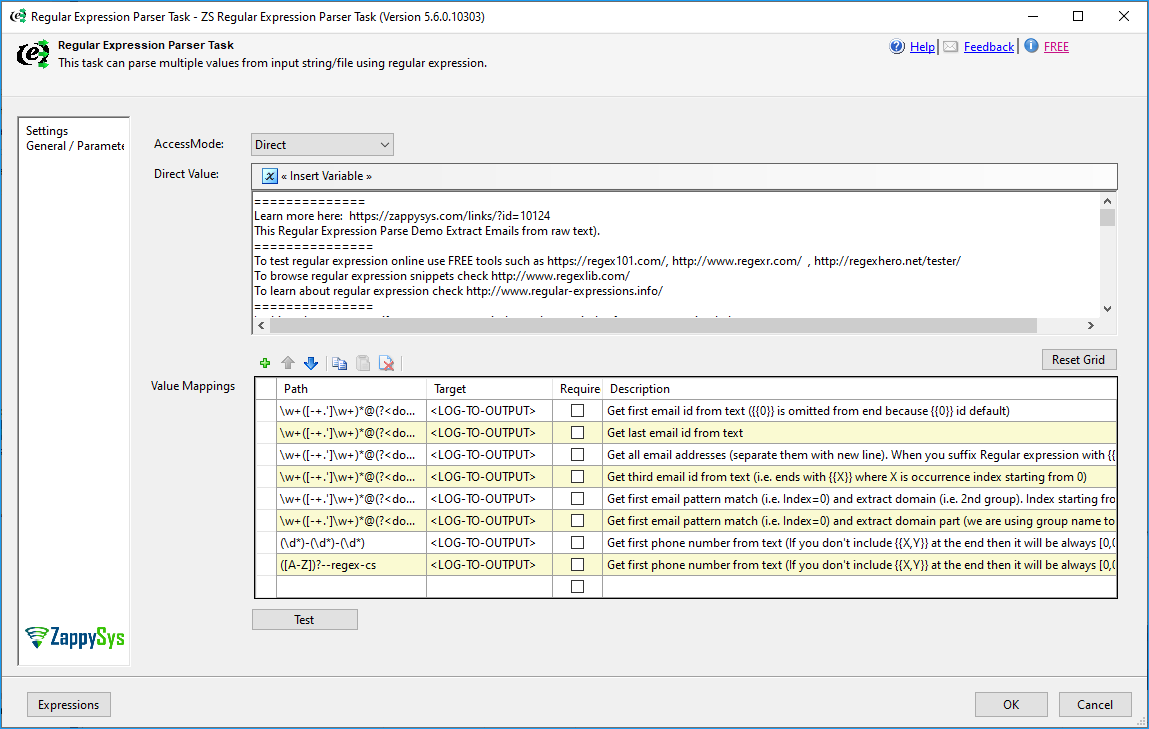

1. SSIS Regex Parser Task
Parse SSIS variable values or file contents using full regex support.

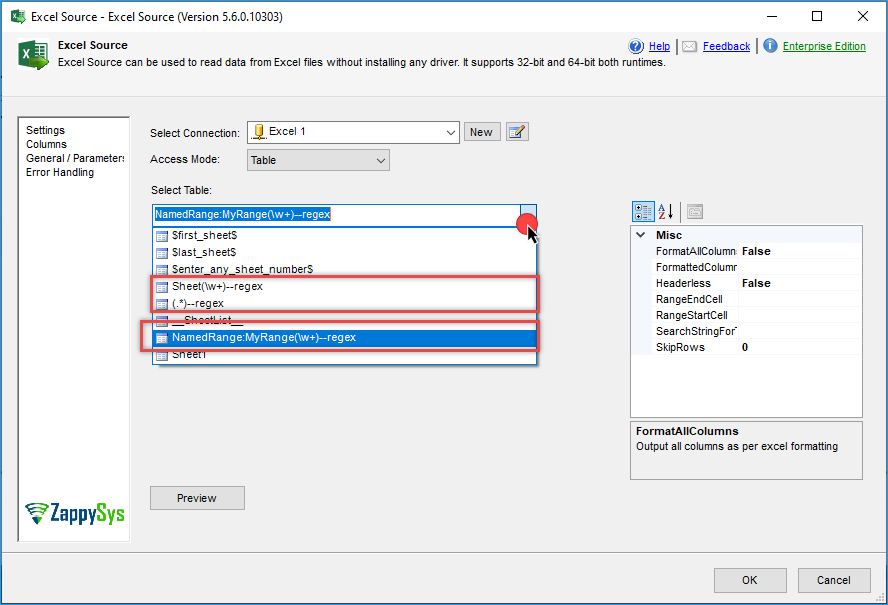

2. Excel Source
Filter sheets or extract sheet names using regex patterns.

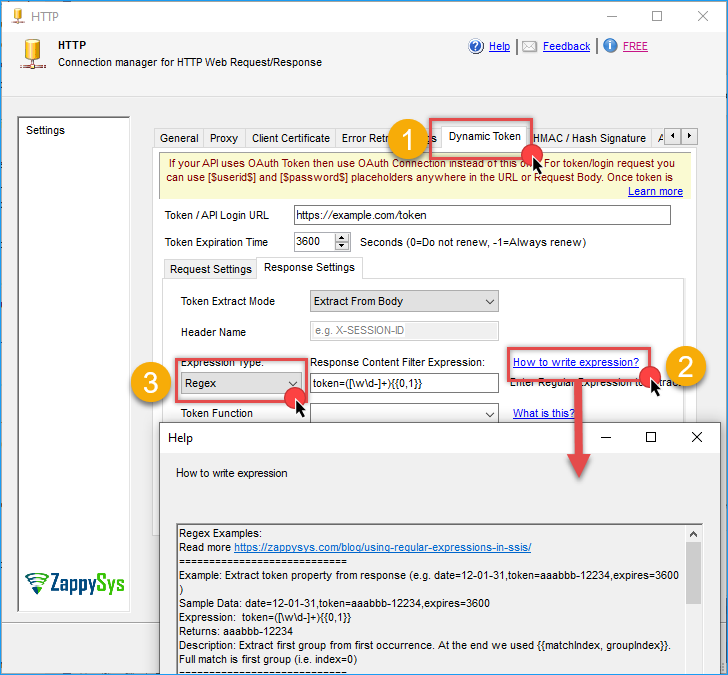

3. REST API Task / HTTP Connection
Extract authentication tokens or dynamic values from API responses.

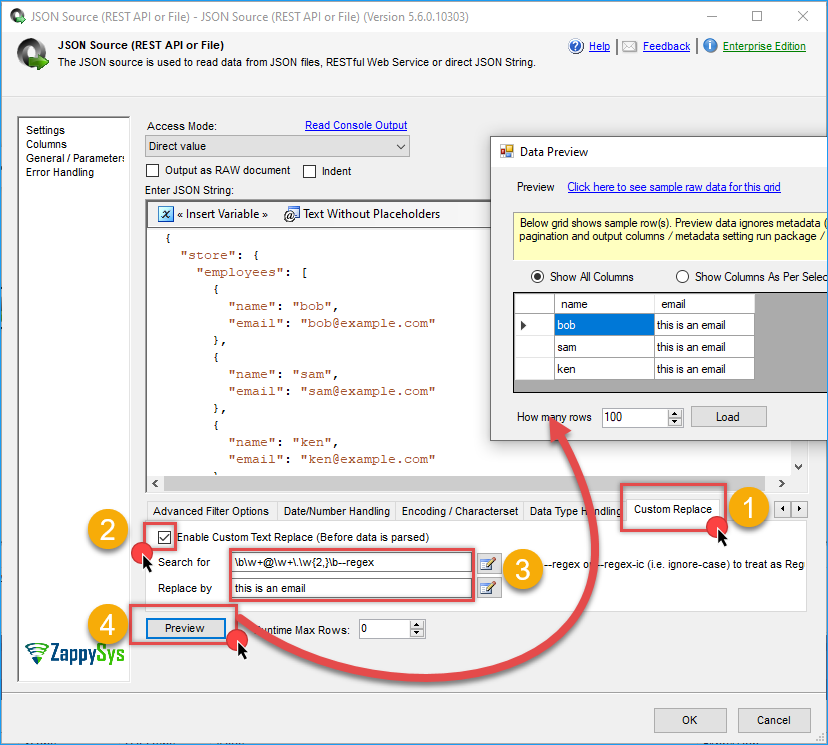

4. JSON Source
Replace or transform string values using regex in pre-processing.
Conclusion
Learning how to apply regex in SSIS unlocks powerful options for text parsing, validation, and transformation. With tools like the SSIS Regex Parser Task and built-in support in ZappySys components, you can implement precise logic with just a few lines of pattern syntax. Focus on mastering lookaheads, lookbehinds, and basic matching rules to improve your data quality and streamline ETL operations.
