How to connect Dropbox with Ruby using ODBC

[daniel]

## Introduction

This article will show how to connect to the Dropbox API with Ruby using the ODBC interface.

Connecting Ruby to Dropbox via ODBC enables seamless interaction with cloud storage, allowing you to automate file management, retrieve stored data, and integrate Dropbox with other applications.

By leveraging the ruby-odbc gem, you can efficiently access and manipulate Dropbox files, automate uploads/downloads, and streamline data workflows. This guide will walk you through the installation, configuration, and troubleshooting process to establish a reliable connection between Ruby and Dropbox using ODBC.

Prerequisites

• Dropbox Account
• Download and install the ZappySys ODBC PowerPack

Steps

Step 1: Install Ruby and the ruby-odbc Gem

Some versions of Ruby may not be fully compatible with the ruby-odbc gem. To ensure proper functionality, using Ruby 3.1.x is recommended, as newer versions may introduce compatibility issues.

1. Download the Ruby Installer.
2. Install Ruby and DevKit.
3. Open Command Prompt as an administrator.
4. Verify the version you use with this command ruby -v.
5. Install the ruby-odbc gem with the following command: gem install ruby-odbc.
6. Verify the gem installed with this command: gem list ruby-odbc.

NOTE: If you encounter installation issues, you may need administrative permissions.

Step 2: Create/Select an App from the Dropbox Developers Page

1. Log into your Dropbox account.

2. Go to Dropbox Developers and click the Create app button to create a new app.




3. Select the Scoped access option when prompted.

4. Choose Full Dropbox to access all files and folders, or App folder to access files in specific folders.

5. Provide a name for your App and click Create App.

6. Under the Permission type section, click Scoped App to select application scopes.

7. Choose all Individual Scopes and Team Scopes if you need to manage team data, then click Submit.

8. Navigate to the Settings tab and copy the App key and App secret to Notepad.

Step 3: Create a New Driver

1. Open the ODBC Data Source by typing “ODBC” in the search box and launching the ODBC Data Source.




2. Go to the User DSN or System DSN tab to access the data source for yourself or other users. Add a new System DSN for SQL Server Integration by clicking the “Add” button.




3. Select ZappySys API Driverfrom the driver list, then choose Dropbox in the connector list and press Continue.




Step 4: Dropbox Connector Configuration

1. Fill in the connector fields, including Client ID, Client Secret, and Scopes (separated by spaces). Example scopes:

   account_info.read account_info.write files.metadata.write files.metadata.read files.content.write files.content.read


2. Generate the token and test the connection.


3. Go to the Preview Tab, select any table, and preview the result. Press OK to save the configuration.



Step 5: Connecting Ruby to Dropbox via ODBC

Once the DSN is set up, you can use ruby-odbc to establish the connection and run queries. Create a Ruby file, e.g., DropboxRuby.rb :

require 'odbc'

# DSN name configured in ODBC
dsn = "API Driver - DropBox"  # Replace with the correct name

begin
  # Connect to the database using DSN
  db = ODBC.connect(dsn)

  # Verify connection
  puts "✅ Successfully connected to ODBC"

  # Execute a test query
  query = "SELECT * FROM list_folder"  # Adjust according to your database
  stmt = db.run(query)

  # Check if there is data
  rows = stmt.fetch_all
  if rows.empty?
    puts "⚠️ No data found in the database."
  else
    # Display results
    rows.each do |row|
      puts row.inspect
    end
  end

  # Close connection
  stmt.close
  db.disconnect

rescue ODBC::Error => e
  puts "❌ Connection error: #{e.message}"
end

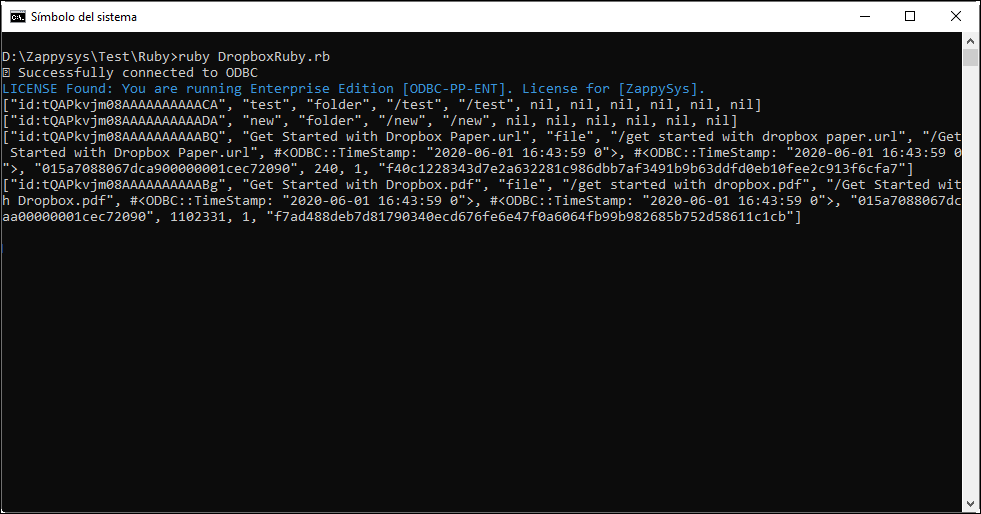

When you run the code, it will call the Dropbox API via ODBC and retrieve data about your campaign lists.

Common errors and solutions

Error: cannot load such file -- dbi (LoadError)

Cause

You are trying to use the dbi gem, but it is not installed.

Solution

In the command line, run these commands to install the ODBC connectors.

gem install dbi
gem install dbd-odbc

---

Error: Failed to build gem native extension.

Cause

A compiler or necessary libraries are missing when compiling the gem.

Solution

In the command line, install MSYS2 and ensure gcc and make are available.

---

Error: Data source name not found, and no default driver specified.

Cause

The DSN is not configured, or the driver is not installed.

Solution

• Verify the configuration in odbcad32.exe
• Ensure the DSN name in the code exactly matches the one configured in ODBC.

---

Error: Issues with Ruby Version

Cause

Some Ruby versions may not be compatible with the ruby-odbc gem, especially if they are too new or old.

Solution

• Check your Ruby version with:

  ruby -v


• If your version is 3.2.x and you experience issues, try using an earlier version of Ruby (e.g., 2.7.x) or use RVM to switch versions:

  rvm install 2.7.8
  rvm use 2.7.8


Conclusion

Integrating Ruby with Dropbox through ODBC provides a powerful way to manage cloud storage, automate file handling, and enhance data accessibility. By following this guide, you have learned how to set up the connection, troubleshoot potential issues, and improve workflow automation.

To get started, download and install the ZappySys ODBC PowerPack to enable ODBC connectivity with Dropbox.

If you experience any challenges, review the error logs and verify your DSN configuration. If you still need assistance, feel free to reach out to ZappySys Support.

References

• Dropbox API Documentation
• Ruby installer

Contact us

If you encounter any challenges or have specific use cases, please contact our support team via chat or ticket.
